Component - Header tab

Purpose

Identify a Component Placeholder or Component for an Asset Type or Asset.

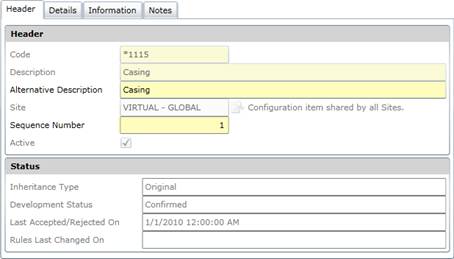

Asset Type Component - Header tab

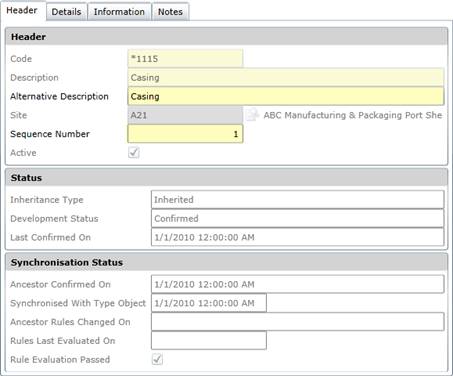

Asset Component - Header tab

Data fields

These data fields are captured on the Component - Header tab.

Field	Description/Setting
Header
Code	The code that identifies an original Component is unique. The code that identifies an inherited Component is the same Code as its ancestor Component in the Asset Type Tree. For example “*1115” or “MOTOR01.
Description	A short description of the Component. For example “Casing” or “Motor No 1”.
Alternative Description	This description is displayed in the Asset Tree and on Work Orders, and can be translated into one of the Standard Languages via a Standard Phrase. Refer to ACCF > Master Data for Shared Configuration > Standard Phrases.
Site	The Site where the Component is located. A User with access rights to this Site can view and use this Component. Select a non-virtual Site from the lookup list.
Sequence Number	The sequence in which the Component appears in a list of Components with the same parent and at the same level in an Asset Type or Asset tree structure.
Active	Ticked if the Component is active and available in the Component lookup list. An inactive Component: Is not available in a lookup list. Is displayed in grey italics in the Asset Tree if the applicable Display Option is selected.
Status
Inheritance Type	The origin of the Asset Component indicates how the Component came into existence and its current configuration. Possible values are “Original” or “Inherited”.
Development Status	The Component's development status. For example, “New - Under Development”.
Last Accepted / Rejected on	The date on which the Component's development was accepted or rejected.
Synchronisation Status in the Asset Type Tree
Rules Last Changed On	The date on which the Rules for the Asset Type Component were changed.
Synchronisation Status in the Asset Tree
Ancestor confirmed on	The date on which development changes were accepted for the Asset Type Component from which the Asset Component is inherited.
Synchronised with Type Object	The most recent date on which the Asset Component was synchronised with the Asset Type Component from which it is inherited.
Ancestor Rules Last Changed On	The most recent date on which Rules for the ancestor Asset Type Component were changed.
Rules Last Evaluated On	The most recent date on which Rules for the Asset Type Component were evaluated.
Rule Evaluation Passed	Ticked if the Component passed the Rule Evaluation and is applicable for the Asset.
