Creating a Corrective Work Order from an Alarm

You can manually create a new corrective work order in response to an alarm.

Note: This functionality will be disabled if:

The alarm's alarm type is configured to automatically create corrective work orders. In this case, a corrective work order will be created automatically when the alarm is raised.

The inspection task that failed activated a follow-up task, or resulted in a follow-up work order. In this case, the originating work order, with the follow-up task, OR the follow-up work order will be used as the corrective work order.

To create a new corrective work order in response to an alarm, you need to do the following:

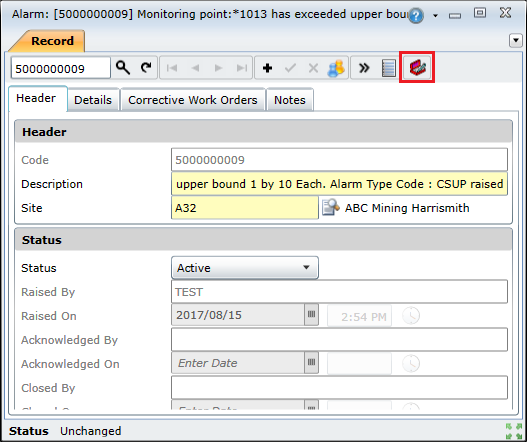

Open the alarm's edit window.
Click the Generate Work Order for Alarm () button on the toolbar.

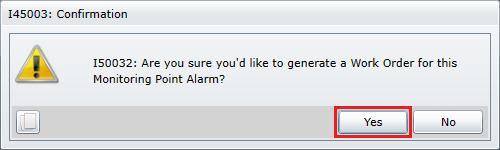

Click Yes to confirm that you want to create a work order.

Note: The corrective work order's code will be displayed in the Work Order field on the Details tab, and it will be listed in the Corrective Work Orders tab.
