Criticality Analysis - Record Tab

These data fields appear on the Criticality Analysis Record grid:

Field	Description
Tree Path	The path to the asset/asset type in the Asset/Asset Type Tree.
Criticality Model Code	A unique code that identifies the criticality model.
Criticality Model Description	A description of the criticality models.
Criticality Inherit Parent	Indicates if the item inherits its criticality from its parent.
Probability Code	A unique code that identifies the probability.
Probability Description	A description of the probability.
Probability Value	Indication of the probability. 10 being the highest probability, and 0 being the lowest probability.
Criticality	A calculated value determining how important the item is.

NOTES:

Components are indicated with a dash at the beginning of their description. For example, "Polo 1" indicates an asset, whereas "- BOOT" indicates a component.

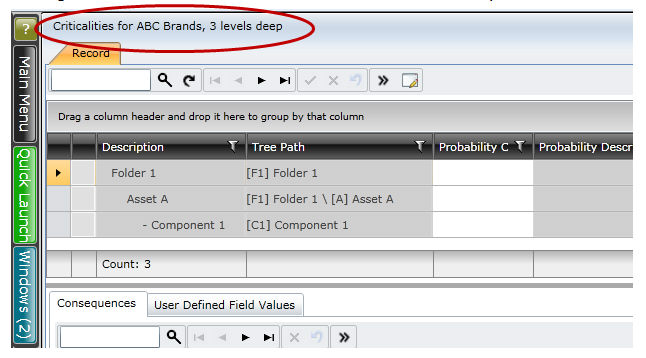

The Record tab heading identifies where in the tree the criticality analysis is being done, as well as the number of levels selected for analysis.
