Failure analysis identifies the repair types that are necessary to address root causes of the failures that an Asset Component can experience. Repair Types are used to record failure analysis on a Work Order when an Asset stops operating because an Asset Component has failed.

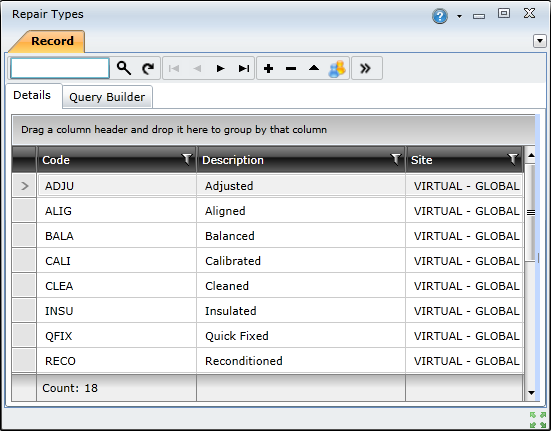

Click Main Menu → Asset Care Plans → Failure Analysis → Repair Types → Show Browse Window (
) to open the Repair Types browse window.
Example: These examples illustrate how Repair Types are used in Failure Analysis.
|
Asset Component |
Failure Type |
Failure |
Root Cause |
Repair Type |
|
Bearing |
Mechanical |
Seized |
Not Lubricated |
Replaced |
|
Shaft |
Mechanical |
Bent |
Misaligned |
Repaired |
|
Motor |
Electrical |
Burnt Out |
Power Surge |
Rewired |
|
Gauge |
Instrumental |
Broken |
Loose Wire |
Rewired |
